- Tunnel washing machine cbw-x65-13
- Introduction:
1. Tunnel washing machine series (called "washing dragon" in China), compared with traditional washing machines, this equipment adopts water circulation and filtration technology, reducing water consumption and steam consumption;
2. It can save water by 70%, electricity by more than 60% and manpower by 80%. The conveying and washing bin adopts the proportioning design to create its powerful washing mechanical force and washing cleanliness.
3. The stainless steel drum and the connecting pipeline of the washing dragon are designed and manufactured in accordance with German quality standards and health standards. The touch panel is intelligent and easy to operate. The washing dragon has built-in standard washing procedures, and you can freely compile washing procedures
4. Double motor drive device ensures the stability of dragon operation.
to configure:
◎ 13 washing bins, each with a washing capacity of 65kg
◎ stainless steel rollers and pipes
◎ complete water recycling tank
◎ grass bottom transmission
◎ large size linen feeding chute
◎ LCD display, PLC controller
working principle:
1. The washing dragon is a fully automatic washing system, which is suitable for all kinds of linen. Each bin of the washing dragon adopts double-layer stainless steel structure. The main body of the washing dragon is placed on the bottom bracket, the outer dragon is used to support, seal and protect the inner dragon, and the inner dragon performs specific washing tasks. There are sealing strips between each bin section, which are then connected with stainless steel rings. The inner dragon is a spiral structure, and the bottom transmits the cloth to the next warehouse section, without hidden danger of cloth blockage.
2. The functions of bin washing dragon are arranged as follows: Bin 1-3 is pre washing, bin 4-8 is main washing, bin 9-12 is rinsing, and bin 13 is neutralization. In the pre washing and main washing stages, the water and the linen flow in the opposite direction, and in the rinsing stage, the water and the linen flow in the same direction. This design can not only save water, but also achieve good cleanliness. Each bin section of the main washing machine is reserved with a drain valve, a steam valve and a detergent filler. Users can change the settings as needed, so that the washing dragon has strong adaptability.
3. This washing dragon can be programmed freely. Through the touch screen of the console, the operator can easily view the working state of the washing dragon, diagnose faults, change washing settings and modify washing procedures.
characteristic:
1. The operation is more intelligent and convenient. The washing dragon has a variety of washing procedures, and you can also freely compile washing procedures.
2. Water circulation and filtration technology are adopted to reduce water consumption and steam consumption.
3. Based on the countercurrent design, the water flow is opposite to the transmission direction of the linen, realizing the degree of washing.
4. Each washing bin in the main washing section has a detergent filling interface, which can realize quantitative and timed feeding.
Description:

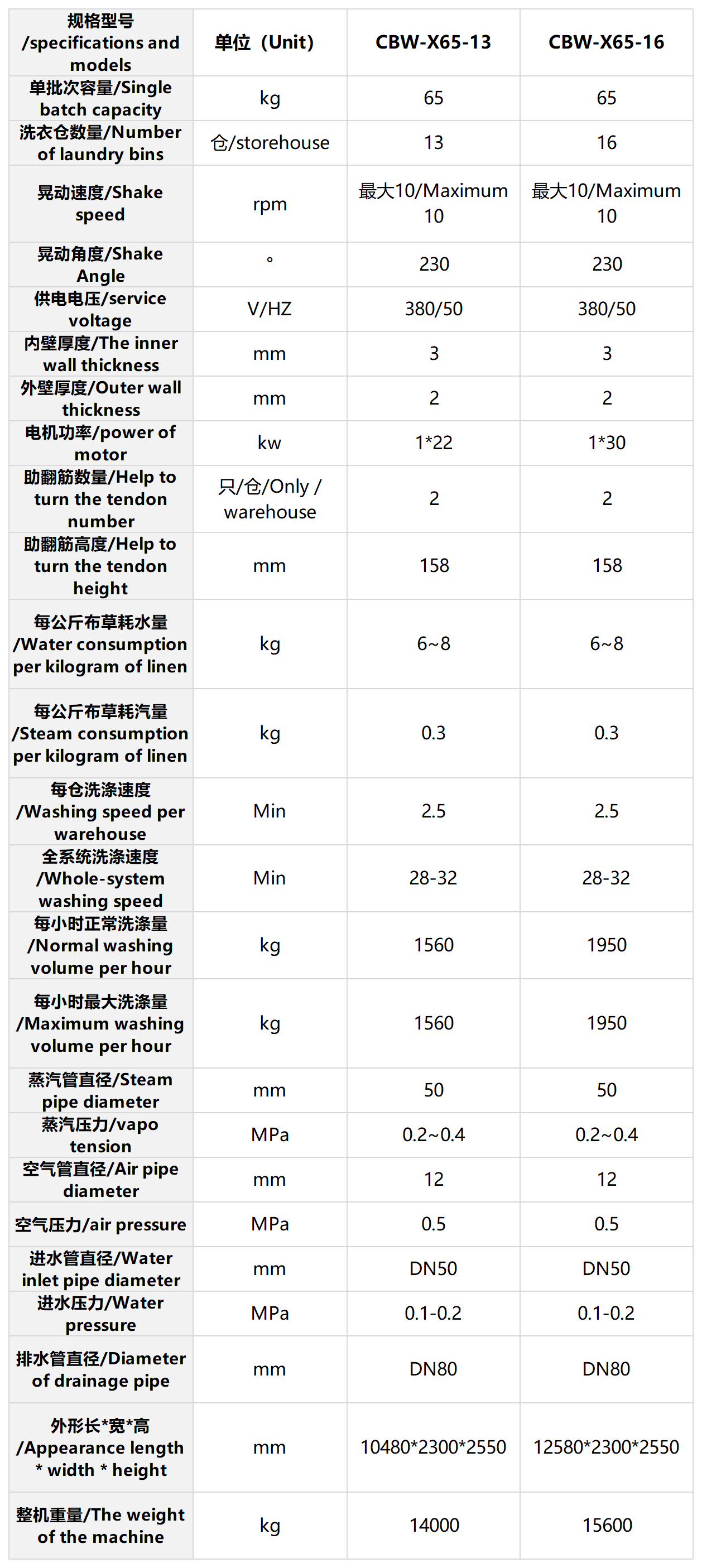

Technical parameter：
